Image Recording Module with Motion Detection EV Kit

The DVR8100 Digital Video Image Recording Module and EV kit comes from the DVR81xx range. This is the full function general purpose version with motion detection and 4-bit key input that allows various command controls.

The DVR8100 can be combined with the C-CAM8 camera module (available separately).

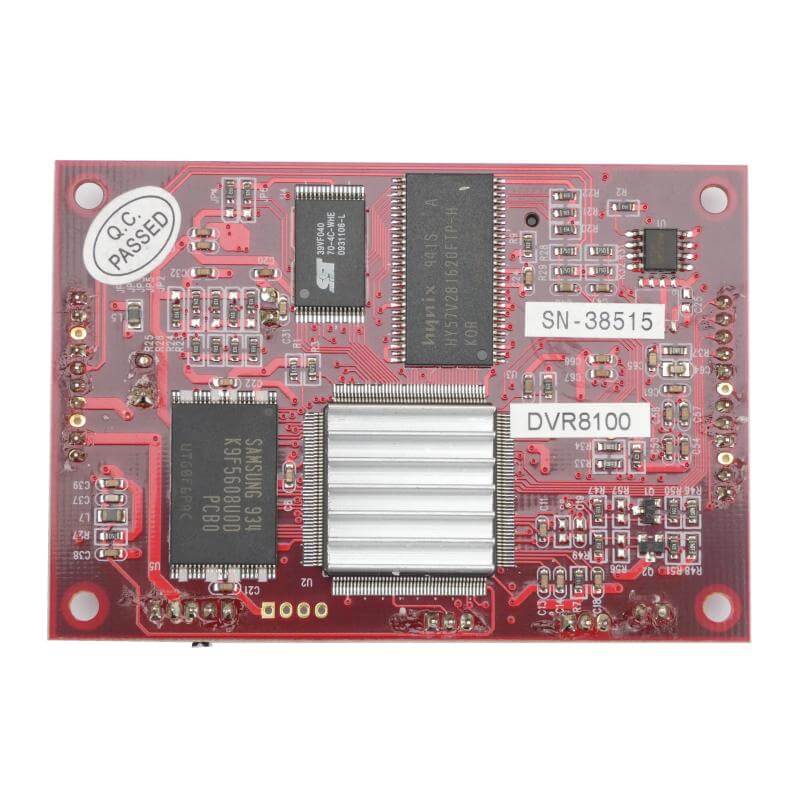

The Evaluation Kit comprises one DVR8100 module, a keyboard module, UK power supply and cable set as pictured.

Please refer to the documentation links below for full product specifications.

• Small size: 80x55mm
• 2-channel input
• PIP feature
• On board Flash memory (option)
• On board SD card (option)
• 12Vdc operation
• External trigger to capture a photo/AVI
• Alarm output when motion detected
• Video output to TV
• 4-bit Key operation
• NTSC or PAL TV system input selection
• 2mm pin connectors

• DVR81xx Series Features and Specifications
• DVR81xx Series Application Notes
• Evaluation Kit Information & Connection Diagram
