8-Mode Delay/Cyclic Timer Relay Module, 0.1 Sec - 60 Min

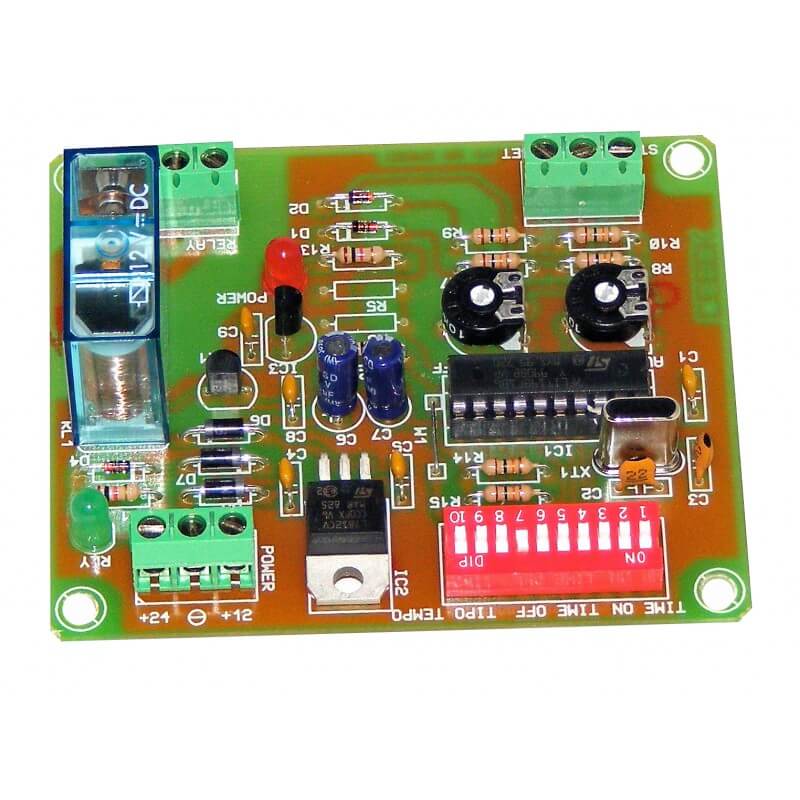

Cebek I-302 (CI302) - 8-Mode Delay/Cyclic Timer Relay Module, 0.1 Sec - 60 Min
Cebek I-302 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

Flexible 8-mode 0.1 second to 60 minute timer module with mains rated relay output offering a variety of cyclic and delay timing options.

Time duration is set using onboard potentiometer and DIP switches that break the 60 minutes into 8 manageable time blocks. Timing mode set using DIP switches. Time and mode settings are retained if power is removed. Inputs for Start and Reset buttons.

Ideal for use in automation circuits, flashing or traffic lights, models, outdoor / indoor (hydroponics) crop growing, etc.

Features
  • 8 timing modes
  • Independently adjustable ON/OFF delay time from 0.1 sec to 60 minutes
  • Delay time set using DIP switches (for 8 time scales) and two potentiometers
  • POWER LED lights when the timer is powered
  • RELAY LED lights when the relay is active
  • DIP switches to set timing mode required
  • RESET input stops the timer at any time
  • Output relay contacts open / closed voltage free
  • 12 or 24Vdc power with reverse polarity protection
ModeFunctionEquivalent Board
1Cyclic | Instant-On | ON-OFF-ON-Etc. | PerpetualCI010 / CI011 / CI012
2Cyclic | Instant-On | OFF-ON-OFF-Etc. | Perpetualn/a
3Cyclic | Start Button | ON-OFF-ON-Etc. | Perpetualn/a
4Cyclic | Start Button | OFF-ON-OFF-Etc. | Perpetualn/a
5Double Delay | Instant-On | Relay active during 2nd delay periodCI033 / CI034
6Double Delay | Start Button | Relay active during 2nd delay periodn/a
7Re-Triggerable | Start Button | OFF Delay Resetn/a
8Re-Triggerable | Start Button | ON Delay Resetn/a

Specifications
Minimum Time0.1 Second
Maximum Time60 Minutes
Operating voltage12 or 24Vdc e.g. Order Code 660.446UK with
connector 778.106 or CFE103
Current65 mA
Output1 x SPDT Relay
Maximum Output
Load (Resistive)
Up to 240Vac or 28Vdc @ 3 Amps max. (Relay Datasheet)
Relay ConnectionsNO, NC, C (Relay FAQ)
Dimensions (mm)~ 87 x 72 x 30 mm
EnclosureWCAH2851
DIN-RAIL MountingC7566
Board ConnectionsScrew terminal blocks
Product FormatPRE-ASSEMBLED Electronic Module Product Format Info
Item Number:
Cebek I-302 (CI302)
Total Price:
£25.92 Exc VAT, £31.10 Inc VAT
Stock Info:
In Stock (UK Warehouse3)
Your Total:
Quantity:
