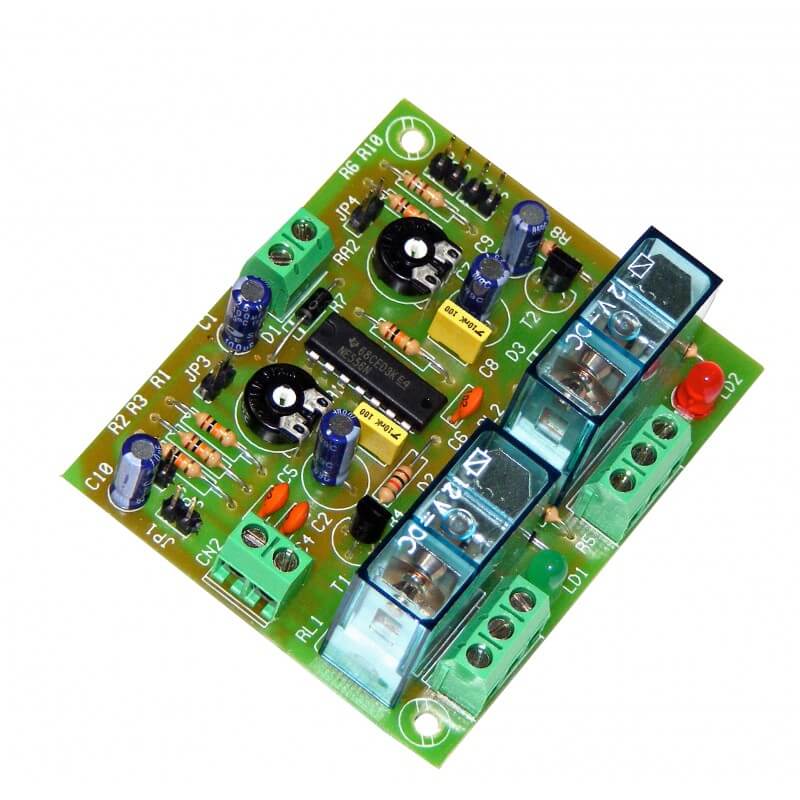

2-Channel Sequential Relay Timer Module, 2 to 45 Minute

2-channel sequential delay timer relay module. Individual activation time setting from 2 to 45 minutes for each relay. Communication I/O connections to daisy chain multiple units. Mains rated relay outputs. Start and Reset switch inputs. Power-Start option.

The module can be activated by the Start Input (using for example a push button or relay contact closure) or by selecting the Power-Start mode so it activates on powering up. Power-Start mode is set using a header jumper not included (Order Code JUMPER-RED)

On activation Relay 1 turns on for a user-adjustable delay period. On completion, Relay 1 turns off and Relay 2 turns on for a second user-adjustable delay period. When relay 2 turns off the unit returns to its standby state. A fresh Start Switch input is required to repeat the cycle. This can be performed manually or automatically if you connect the Start Switch input to the relay output of a cyclical timer (e.g. VM188). This setup provides automatic and continuous retriggering of the CI028 with a user adjustable pause time provided by the cyclical timer to produce a repeating on/off/pause/on/off/pause/etc. effect.

Both delay periods are independently settable from 2 to 45 minutes using the onboard potentiometers (header pins allow the use of user-supplied external potentiometers if required).

A Reset Switch input immediately stops the timing sequence, turns off the active relay and returns the module to its standby state.

Each board has a communication input and output that allows several boards to be daisy chained together in series.

The module has no memory function and will always start from the relay 1 position when first activated.

The module includes protection against inverse polarity, indicator output LEDs and screw terminal blocks. Requires external 12V dc power supply (Order Code 660.446UK with connector 777.001UK).

You can also use this board to reverse the direction of a DC motor or polarity of a DC supply voltage.

Video demonstrates the I-27 board that operates exactly the same but with time delays of 1 to 180 seconds.
