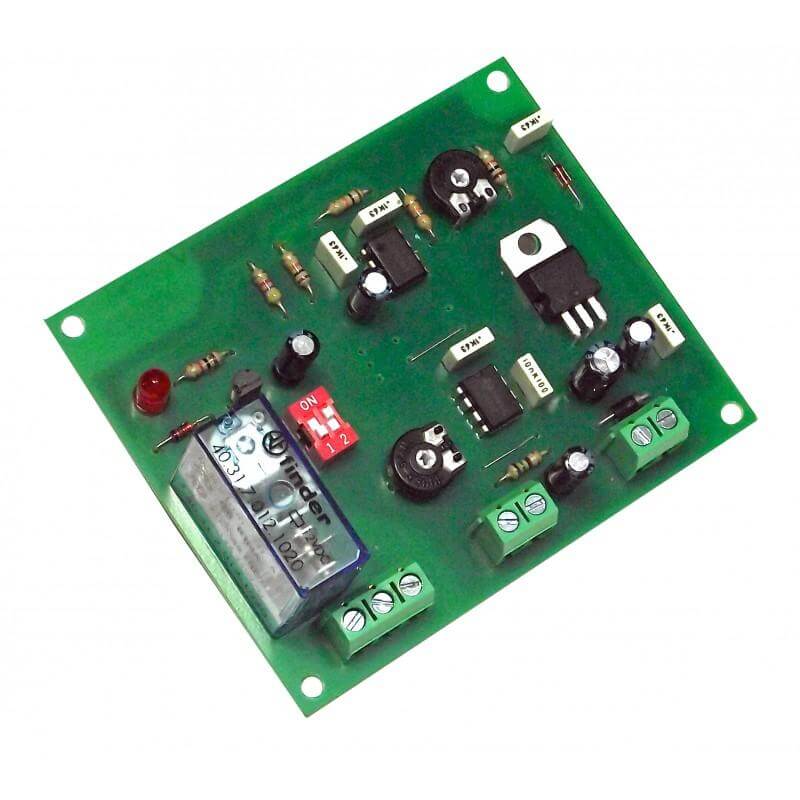

Cebek I-171 (CI171) - Under-Voltage Detection Relay Module, 16-28Vdc
Pre-Assembled Module
View all Cebek Electronic Modules

Voltage drop detection module (16-28Vdc) with a mains rated relay output. Simply place in parallel with the power supply to be monitored.

The relay output activates when the voltage drops below the trigger level (user adjustable from 16 to 28Vdc using onboard trimmer).

The output relay can be set to activates on a timer (adjustable from 1-5 seconds) or latching on with manual reset input input.

Applications include low battery voltage warning.

The board is reverse polarity protected. Screw terminal blocks for all connections.

Model CI170 offers a detection range from 7 - 16V dc.

Specifications
Supply Voltage16 to 28Vdc
Current Consumption15mA min. - 60mA max.
Voltage Activation Range16V - 28V dc +/- 5% (adjustable)
Hysteresis Level100mV
Output1 x SPDT Relay
Maximum Output
Load (Resistive)
Up to 240Vac or 28Vdc @ 3 Amps max. (Relay Datasheet)
Relay ConnectionsNO, NC, C (Relay FAQ)
Output Channels1
Relay ActionTimer (1 to 5 Seconds) or Latching with manual reset
Dimensions (WxDxH)87 x 72 x 30 mm
Weight49 gr
Product FormatPRE-ASSEMBLED Electronic Module
Product Format Info
Item Number:
Cebek I-171 (CI171)
Total Price:
£16.20 Exc VAT, £19.44 Inc VAT
