Cebek
19-30Vdc (24V nominal), 5 Amp adjustable stabilised power supply module complete with 230Vac mains transformer. Short circuit protection. Screw terminal blocks...
Electronics > Circuit Components > Printed Circuit Boards > Development Boards
cebek_fe_15
FE-15
52.85
Quasar Electronics Limited
https://quasarelectronics.co.uk/Item/cebek-fe-15-230vac-power-supply-module-19-30vdc-5a-with-transformer

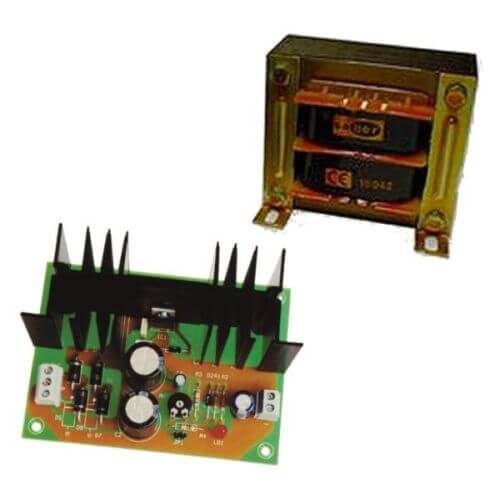

19-30Vdc, 5 Amp adjustable stabilised power supply module complete with a 230Vac mains chassis transformer. The module provides a stabilised output with short circuit protection, LED 'On' indicator and screw terminal blocks for connections.
The output voltage can be adjusted from 19-30V dc using the onboard potentiometer.
The module is supplied fully assembled. All you need to do is house it in a suitable enclosure with the supplied chassis transformer, add the wiring, a suitable fuse and on/off switch. Ideal for powering many projects.
Specifications| Input Voltage | 230Vac mains |
| Nominal output voltage | 24Vdc |
| Output voltage adjustment | 19 - 30Vdc |
| Continuous output current | 3.5 Amp max. |
| Peak Output current | 5 Amp max. |
| Ripple (with load) | 7 mV max. |
| Module dimensions | ~ 110 x 80 x 55 mm |
| Transformer dimensions | ~ 96 x 90 x 82 mm |
| Board Connections | Screw terminal blocks |
| Product Format | Pre-Assembled electronic module with separate mains chassis transformer |
| WARNING | Product operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info |
