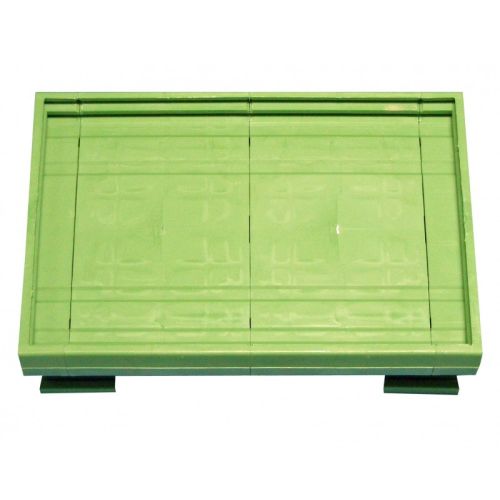

C7585 DIN RAIL Mounting for 107mm wide x 76.25mm long printed circuit boards. Allows you to mount the PCB onto a DIN-RAIL in an easy, secure and economical manner. Support is supplied with the base, two lateral parts and feet.
Dimensions quoted refer to the PCB's width and depth. The total external dimension can be calculated by respectively adding 5.6 and 2.5mm to the width and the length.
They are made of auto extinguishing Polyamide-66 (UL94-V2). Specially recommend for use with power supplies modules, input/output interface modules, optocouplers, relays modules, controllers, devices for solar energy and all circuits requiring an installation on a standard DIN-RAIL.Specifications
|To suit board dimensions||107mm wide x 76.25 mm long|
|External Dimensions||112.6mm wide x 78.75 mm long|
