15-Channel IR Receiver Electronic Kit

This product is obsolete/discontinued and no further stocks are available. Please see alternatives using the category links above.

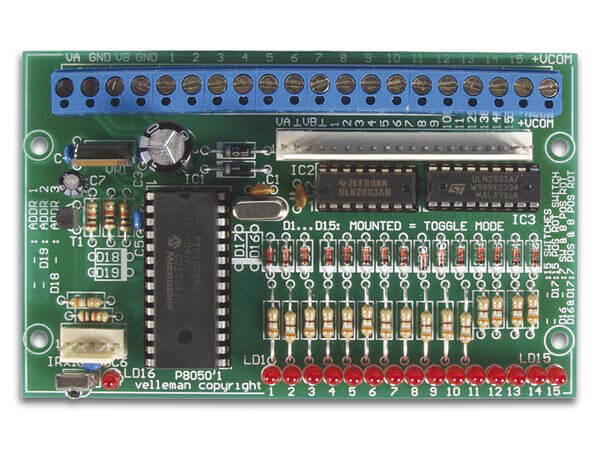

This 15-Channel IR Receiver SELF-ASSEMBLY electronic kit provides 15 open collector outputs and works with K8049 and a number of other products in The range as listed below.

Also available in PRE-ASSEMBLED Electronic Module format (Order Code VM122).

• works together with K8049, K8051, K8055N, K8056, K6714, K6714-16, K2633 and VM121
• 15 open collector contacts: max. 50V/50mA
• LED indication for each output
• multiple IR sensors possible (type : PIC1018SCL connected in parallel)
• transmitter - receiver range: up to 20m
• 4 different modes:
  • 15 independent outputs
  • 15 rotary outputs
  • 7 independent outputs & 8 rotary outputs
  • 7 rotary outputs & 8 rotary outputs (independent from each other)
• 3 addresses allow the use of multiple receivers in one room

• power supply: 8 ~ 14VDC or 2x6 ~ 2x12VAC (150mA)
• current consumption:
  • all outputs off: 10mA
  • all outputs on: 150mA
• dimensions: 71 x 114mm (2.8" x 4.5")
• Product format: SELF-ASSEMBLY electronic kit (KT Product Formats Info)
