2-Channel Momentary / Toggle Relay Receiver Module, 230Vac

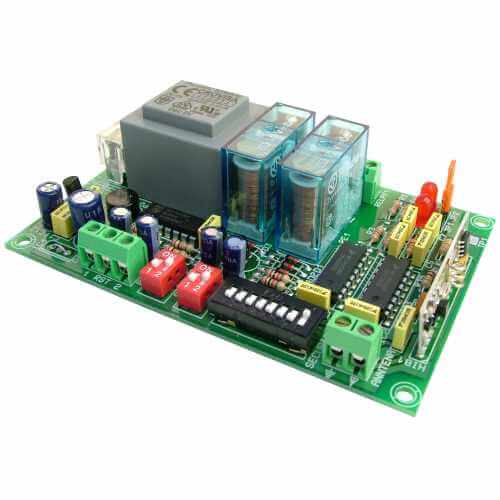

Cebek TL-104 (CTL104) - 2-Channel Momentary / Toggle Relay Receiver Module, 230Vac
CEBEK TL-104 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

The Cebek TL-104 is a 2-Channel 230Vac mains powered Momentary or Toggling/Latching RF relay receiver module from our Group 1 range of 433.92MHz RF remote control modules - mix and match from a variety of receiver and transmitter options to suit your needs (see Compatibility Table tab above).

The relay outputs on this receiver module can be individually set to operate in either Momentary mode (turning on only while the transmitter button is held down) or Toggling/Latching mode (activating at the first push of the transmitter button and only disconnecting after a second push of the button).

Any number of Group 1 transmitters and receivers can be set to either accept or ignore other modules within range using the 13,122 security code combinations.

Features
  • 2 x Momentary or Toggling/Latching action mains rated relay output
  • 5A mains rated relay outputs (NO, NC, C)
  • 433.92MHz ISM certified radio frequency (ITU Region 1)
  • 13,122 security code combinations (to stop crosstalk)
  • Onboard micro-switches to select security code
  • LED relay status indicator
  • Screw terminal blocks for connections
  • Reverse polarity protection
  • Aerial wire included
  • See User Manual for full details
Specifications
Operating Voltage230Vac
Current Consumption65mA
Output2 x SPDT Relay
Maximum Output
Load (Resistive)
Up to 240Vac or 28Vdc @ 5 Amps max. (Relay Datasheet)
Relay ConnectionsNO, NC, C (Relay FAQ)
Output Channels2
Relay ActionMomentary, Latching
RF Frequency433.92 MHz
Board ConnectionsScrew terminal blocks
Dimensions (WxDxH)~ 72 x 110 x 30 mm
Weight220g
Product FormatPRE-ASSEMBLED Electronic Module Product Format Info
Compatibility Table
CTL0051 Channel Keyfob RF Remote Control Transmitter, 30m
CTL0062 Channel Keyfob RF Remote Control Transmitter, 30m
CTL0111 Channel Handheld RF Remote Control Transmitter, 100m
CTL0122 Channel Handheld RF Remote Control Transmitter, 100m
CTL0131 Channel Handheld RF Remote Control Transmitter, 300m
CTL0142 Channel Handheld RF Remote Control Transmitter, 300m
CTL0152 Channel Fixed RF Remote Control Transmitter Module, 100m
CTL0162 Channel Fixed RF Remote Control Transmitter Module, 300m
NB Only one channel will operate if you use a 1-channel transmitter with a 2-channel receiver. You can use a 2-channel transmitter with two 1-channel receivers (see User Manual for details). You cannot use multiple button presses or simultaneously use two transmitters if they are operating in range of one another (regardless of their coding).
Item Number:
Cebek TL-104 (CTL104)
Total Price:
£38.62 Exc VAT, £46.34 Inc VAT
Stock Info:
In Stock (Our UK Warehouse)
