You Are Here : Home > Electronic Kits & Modules > Sensing Device Kits > Voltage Sensors > Cebek I-72 (CI072) - Voltage Increase Detection Buzzer Module, 9-16Vdc

Voltage Increase Detection Buzzer Module, 9-16Vdc

Cebek I-72 (CI072) - Voltage Increase Detection Buzzer Module, 9-16Vdc

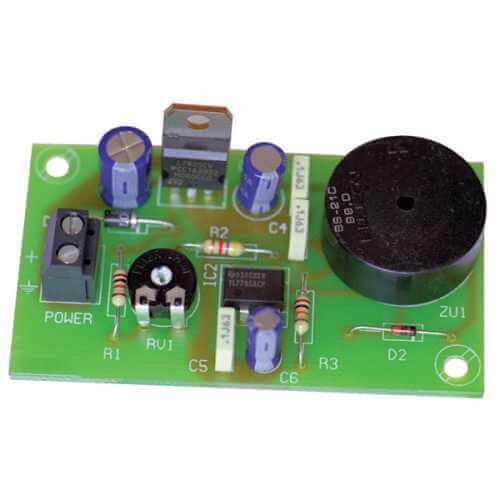

Cebek I-72 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

Voltage increase detection module (9-16Vdc) with audio warning buzzer output. Simply place in parallel with the power supply to be monitored.

The warning buzzer will sound when the voltage increases above a preset level from 9 to 16V dc (settable by the user using an onboard trimmer). The maximum tolerable input voltage is 16Vdc.

The board is reverse polarity protected. Screw terminal blocks for all connections.

Model CI073 offers a detection range from 18 - 28V dc.

Specifications
Supply Voltage9 - 16V dc maximum
Current Consumption50mA max.
Voltage activation range9V - 16V dc
OutputAcoustic buzzer
Dimensions (WxDxH)70 x 40 x 25 mm
Product FormatPRE-ASSEMBLED Electronic Module Product Format Info
Item Number:
Cebek I-72 (CI072)
Total Price:
£9.06 Exc VAT, £10.87 Inc VAT
Stock Info:
In Stock (Our UK Warehouse)
Your Total:
Quantity:
