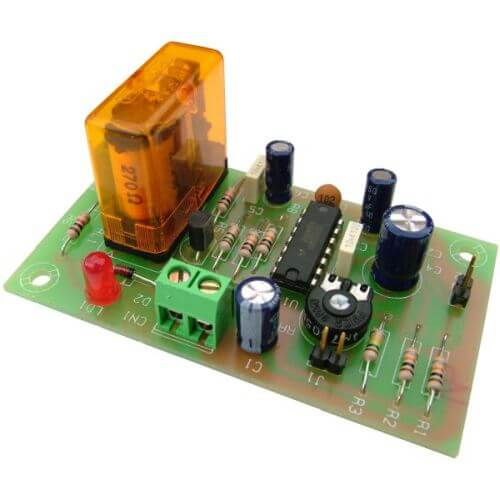

12Vdc powered 2 to 45 minute DELAYED-ON timer module with a mains rated relay output.
The user-set delay time starts when power is applied to the board but the relay remains off. On completion, the relay activates and remains on until the modules power supply is removed. The process will be repeated each time the board is powered up.
The delay period is adjustable from 2 to 45 minutes using the onboard potentiometers (header pins allow the use of user-supplied external potentiometers if required).
The timer can be modified to activate using the Start Input (using for example a push button or relay contact closure). The timing sequence is non-retriggerable and will be completed regardless of further trigger signals or if the contacts remain closed after activation. Power must be removed and reapplied to reset the timer.
A 1 to 180 second version of this board is available (Order Code CI036)
Features| Supply Voltage | 12V dc |
| Power Supply Options | Power Supply Module: CFE103 or UK Plug Power Supply: 660.446UK with connector 777.001UK |
| Current Consumption | 80mA Max |
| Output | 1 x SPDT Relay |
| Maximum Output Load (Resistive) | Up to 240Vac or 28Vdc @ 5 Amps max. (Relay Datasheet) |
| Relay Connections | NO, NC, C (Relay FAQ) |
| Dimensions (WxDxH) | ~ 44 x 76 x 30 mm |
| Enclosure | WCAH2853 |
| Product Format | PRE-ASSEMBLED Electronic Module Product Format Info |
