230Vac Darkness Activated Relay Module

Cebek I-142 (CI142) - 230Vac Darkness Activated Relay Module

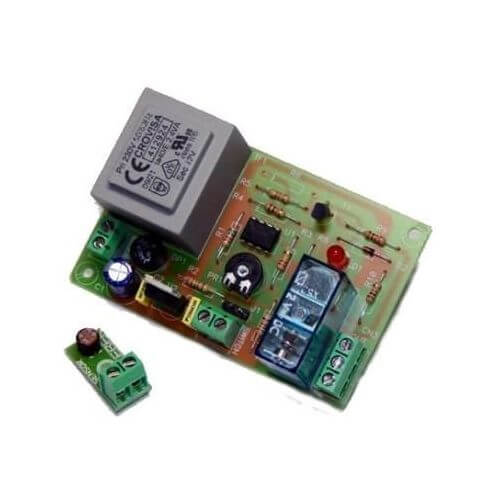

Cebek I-142 Electronic Module (Pre-Assembled)
Cebek Electronic Modules

230Vac darkness activated detector module with adjustable sensitivity and mains rated relay output.

The relay is activated when the light level falling on the detector board drops below a user set threshold. The relay is deactivated when the light level increases again.

Applications: Automatically turn on electric lights or security devices when ambient light falls below a preset level.

Features
  • Detector is mounted on a separate board
  • User adjustable sensitivity
  • LED "active" indicator
  • Reverse polarity protection
  • Screw terminal blocks for all connections
  • See Order Code CI104 for a light activated version of this product
Specifications
Minimum detection level25 Lux
Maximum detection level130 Lux
Operating Voltage230Vac
Output1 x SPDT Relay
Maximum Output
Load (Resistive)
Up to 240Vac or 28Vdc @ 5 Amps max. (Relay Datasheet)
Maximum Output Power1000 Watts
Relay ConnectionsNO, NC, C (Relay FAQ)
Dimensions (WxDxH)Main board: 85 x 55 x 35 mm
Detector Board: 13 x 25 x 8mm
EnclosureWCAH2853
Board ConnectionsScrew terminal blocks
Product FormatPRE-ASSEMBLED Electronic Module Product Format Info
WARNINGProduct operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info
Item Number:
Cebek I-142 (CI142)
Total Price:
£17.82 +VAT, £21.38 Inc
Stock Info:
In Stock (UK Warehouse)
