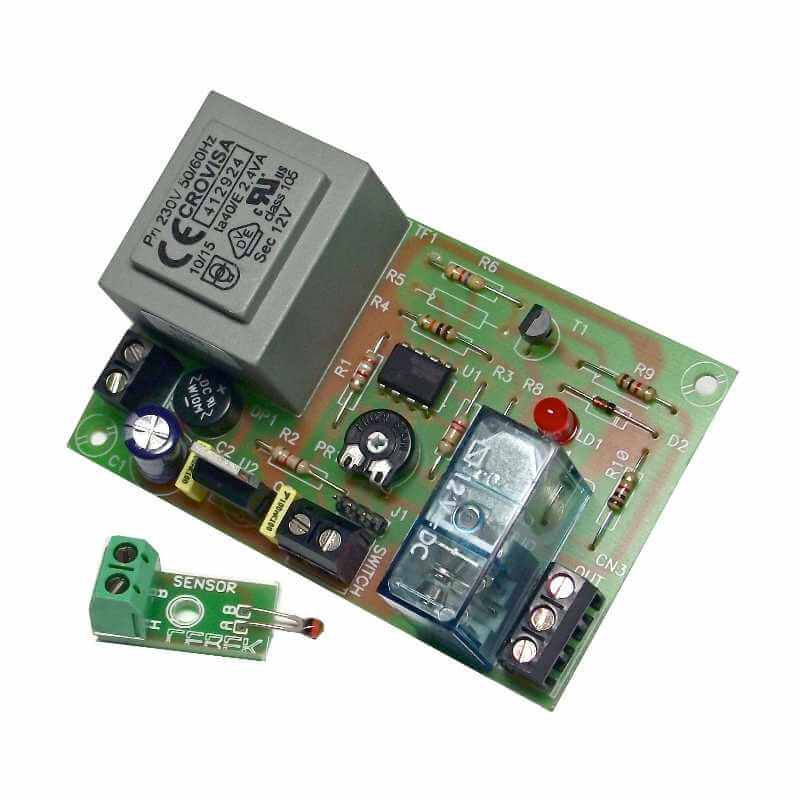

230Vac powered, temperature controlled relay board thermostatic switch. Control an AC/DC fan, heater, incubator, etc.
The connected equipment can be set to either turn On or Off when the sensor temperature falls or rises 0.5°C either side of the trigger temperature (user settable from -10 to 60°C).
Separate small temperature probe board is included. It can also be used with the optional Cebek AC-3 Temperature Sensor Probe (-10 to +60°C).
Alternative options: CI008 12Vdc version and CI081 60-150°C, 12Vdc version.
Specifications| Trigger Range | -10 to +60°C |
| Hysteresis Range | 0.5°C |
| Working voltage | 230Vac |
| Current | 60 mA |
| Output | 1 x SPDT Relay |
| Maximum Output Load (Resistive) | Up to 240Vac or 28Vdc @ 5 Amps max. (Relay Datasheet) |
| Relay Connections | NO, NC, C (Relay FAQ) |
| Board Dimensions | 85 x 55 x 35 mm |
| Enclosure | WCAH2853 |
| Board Connections | Screw terminal blocks |
| Product Format | PRE-ASSEMBLED Electronic Module Product Format Info |
| WARNING | Product operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info |
