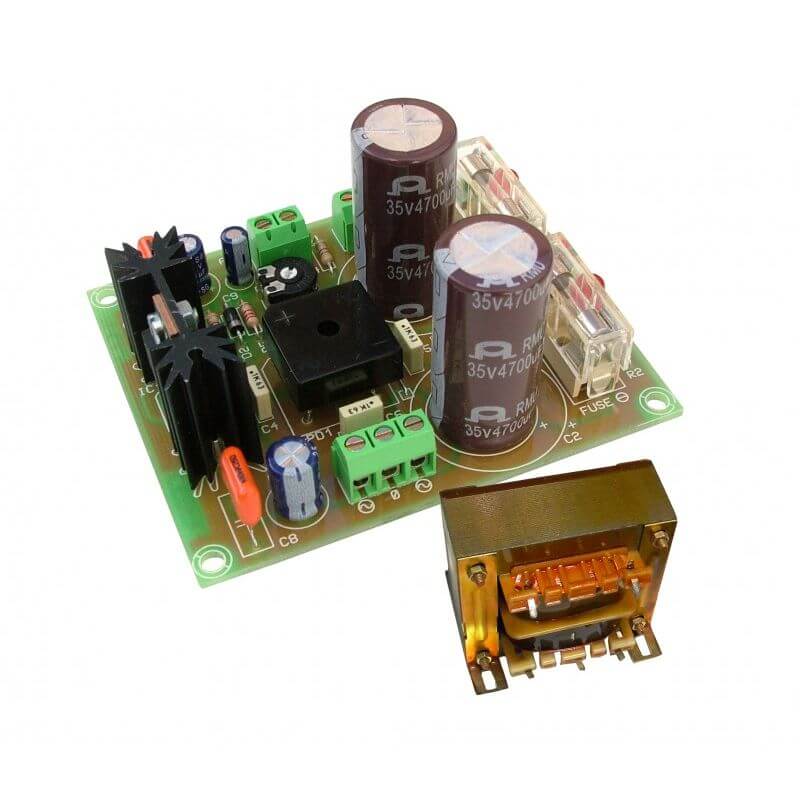

Dual polarity ±28Vdc, 2.5 Amp stabilised power supply module complete with a 230Vac mains chassis transformer. A secondary output provides an adjustable 18Vdc, 150mA.
The module provides a stabilised output with short circuit protection, LED indicators, onboard fuses and screw terminal blocks for connections.
Suitable for powering two of our CE030 amplifier modules
The module is supplied fully assembled. All you need to do is house it in a suitable enclosure with the supplied chassis transformer, add the wiring and an on/off switch. Ideal for powering many projects.Specifications
|Input Voltage||230Vac mains|
|Continuous output current||2.5 Amp max. (1.25A + 1.25A)|
|Secondary output||18V (adjustable 17 - 22V)|
|Secondary output current||150 mA max.|
|Module dimensions||~ 72 x 88 x 30 mm|
|Transformer dimensions||~ 85 x 70 x 75 mm|
|Board Connections||Screw terminal blocks|
|Product Format||Pre-Assembled electronic module with |
separate mains chassis transformer
|WARNING||Product operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info|
