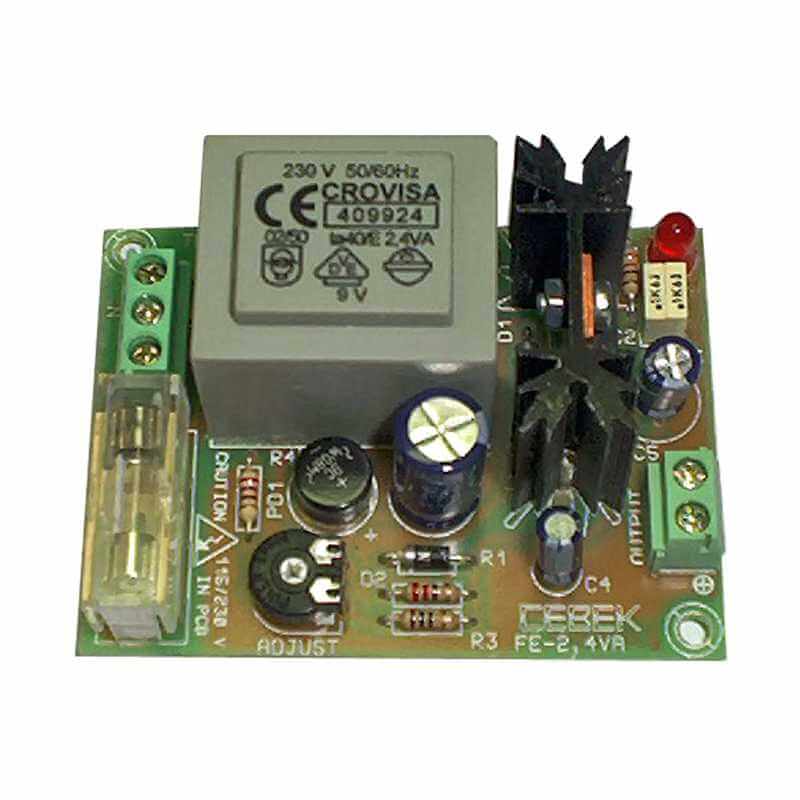

5Vdc, 220 mA stabilised power supply module complete with an onboard 230Vac mains transformer. The module provides a stabilised, adjustable (3-8V) output with short circuit protection, onboard fuse, LED 'On' indicator and screw terminal blocks for connections.
The module is supplied fully assembled with onboard transformer. All you need to do is house it in a suitable enclosure, add the wiring and an on/off switch. Ideal for powering many projects.
Suitable for use with DIN-RAIL Mounting (Order Code C7563)
Product selection advice: Please ensure the equipment under power draws less current than the power supplies maximum rated current detailed below (do not rely on equipment rating specifications as they are often incorrect). We recommend that the power supply is rated at least 20% above the equipment to be powered so it can handle current surges, etc.
Specifications| Input Voltage | 230 Vac mains |
| Nominal output voltage | 5 Vdc |
| Output voltage adjustment | 3 - 8 Vdc |
| Power output | 1.1 VA |
| Continuous output current | 220 mA max @ 5 Vdc. |
| Ripple (with load) | 5 mV max. |
| Fuse | 100 mA |
| Module dimensions | ~ 72 x 53.75 x 30 mm |
| DIN Rail Mount | C7563 |
| Enclosure | WCAH2853 |
| Board Connections | Screw terminal blocks |
| Product Format | ASSEMBLED MODULE with onboard mains transformer |
| WARNING | Product operates at mains voltage and is not suitable for children. An isolating enclosure is required (not included). Installation, testing and commissioning should be performed by a competent person. Mains Electricity Info |
