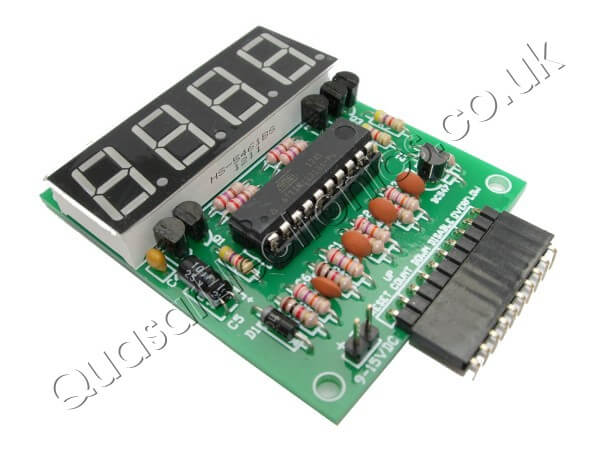

AS3129KT - 4 Digit Up-Down Event Counter
Ability Level 2: ModerateMade in BritainProduct Formats Available : Pre-Assembled Module (AS) or
Self-Assembly Electronic Kit ( Soldering Required)

Low cost Up-Down event counter with 4 digit LED display (expandable to 8 digits). Count either Up or Down from 0000 to 9999.

Inputs are triggered by any make contact so can be used to count pulses from switches, relays, open collector outputs or simply push buttons. For example, a turnstile micro switch or relay output from an infra-red security beam (our kit 3130) counting cars, people or items on a conveyor belt. The input must opened before another count can be registered.

Overflow output pulses low when the count wraps around to zero. This output allows two counters to be connected together to make an 8 digit counter.

Specifications
Supply9...15Vdc
(e.g. Order Code 660.446UK with connector 778.106)
Current20 - 40mA max.
Count Range0000 to 9999 (expandable to 8 digits - see below)
Count speed30 to 35 per second max.
Debounce Time~15msec for each low/high or high/low
InputsReset / Up / Down / Disable
Input triggermake contact e.g. switches, relays, open collector outputs or simply push buttons
Overflow outputEnables 2nd counter connection for 8 digit display
Display4-digit 7-segment with decimal point, 14mm RED LED
Board Dimensions51x64mm
Connections10 pin SIL header
Product FormatsSELF-ASSEMBLY Electronic Kit (KT) or
PRE-ASSEMBLED Electronic Module (AS) Product Formats Info
DocumentationUser Manual
